routines — design

executable markdown on rails

A routine is a single markdown document — frontmatter for schedule, prose for judgment, fenced sh blocks for mechanics. bin/routine runs the blocks deterministically; when one fails, the document itself becomes the prompt: claude receives the error in full context, repairs state, and the runner retries the block once. Every scheduler — launchd locally, a CI cron, a human at a shell — is a dumb tick that ends at the same routine run.

try   { blocks, in order }          # zero-LLM happy path — cheap, fast, CI-safe
catch { claude("handle $error") }   # the doc's prose is the handler's context

The whole control flow. Everything below is detail on these two lines.

Layout — a routines home, and the tool

The documents live in a routines home — $ROUTINE_HOME, default ~/.routines — and this repo is only the tool.

~/.routines/<name>.md            # the routine: frontmatter + prose + ```sh blocks
~/.routines/.state/<name>/       # lock/, last-run.json, runs.jsonl, logs/<ts>-<pid>.log
~/.routines/.state/tick.log      # the sweep's journal — one line per tick

bin/routine                      # the only runner — bash 3.2-safe, zero-dep
routines/                        # this repo's own routines — the CI convention
.github/workflows/routines.yaml  # generated by `routine sync-ci`
docs/                            # this page + its figures

Personal routines never enter the public tool repo, and the repo can move — or be replaced by a curl'd copy of bin/routine — without breaking launchd, because the agent points at the runner, not at a checkout.

ROUTINE_HOME is the only anchor — ROUTINE_DIR (documents) and ROUTINE_STATE (run state) derive from it and are overridable individually; install pins all three into the launchd agent, so re-run it after moving any.
Test seams — ROUTINE_AGENTS_DIR, ROUTINE_LAUNCHCTL, ROUTINE_CLAUDE, ROUTINE_NOW, and ROUTINE_PMSET redirect launchd, claude, the clock, and the dark-wake probe — the seams the test suite runs through.

The document — `$ROUTINE_HOME/<name>.md`

Documents and run state live in a routines home — $ROUTINE_HOME, default ~/.routines, with state under its .state/; this repo is only the tool, so personal routines never enter it and the runner can move without breaking launchd. One file per routine. Frontmatter is flat key: value, parsed with awk — no yq, no yaml library; one pair of surrounding quotes is stripped, CRLF tolerated. Only sh / bash fences execute, sequentially, each under bash -e; other fences are material for the prose. Fences follow CommonMark (``` or ~~~, 3+ long, indent 0–3 stripped, closed only by the same character at least as long). A block that needs an asset writes or references sibling paths.

---
schedule: 30 7 * * 1-5     # 5-field cron, evaluated in UTC; omit ⇒ on-demand only
timeout: 600               # seconds for the whole routine
requires: GITHUB_TOKEN     # env vars that must be non-empty
on_error: claude           # claude (default) | fail
---

# Morning brief

Prose is not decoration — it is the context the error-handler inherits:
intent, traps, judgment calls. Write it for the agent that arrives when
a block below has just failed.

```sh
gh api notifications --paginate > "$ROUTINE_STATE_DIR/inbox.json"
```

```sh
claude -p "summarize inbox.json …"   # a block may itself call claude — an agent step on rails
```

The schedule, the judgment and the mechanics in one artifact — script and prompt stop drifting apart.

try / catch — the failure contract

The happy path never calls a model. The document is the handler's context precisely because it was written before anything broke.

① try

blocks run in order; each block's output is appended to the run log under a block delimiter
each block's exit code is the truth — nothing interprets it

② catch — on_error: claude

the runner invokes claude --model opus --permission-mode=auto --no-session-persistence -p with the full document, the failing block, and its captured output, cwd = the routines home, env carrying ROUTINE_NAME, ROUTINE_STATE_DIR and ROUTINE_HOME as the blocks see them
instruction: running unattended; diagnose and repair state; do not continue the routine yourself
never start a final-message line with needs input: or failed: — the Stop hook would open an unkeyed thread per run — but use the stable thread key the document names

③ retry

the runner re-executes the failing block once — pass ⇒ continue to the next block; fail ⇒ the routine exits with that block's code
one repair attempt per block, no loops

④ degrade

no claude binary or auth (bare CI) ⇒ behaves as on_error: fail, with the reason logged

The agent never steers control flow — the deterministic retry is the verdict, never the agent's exit code.

Due-ness — derived, never matched

A routine is due when next-fire-after(last started run, schedule) ≤ now; a missing last-run.json means due. Cron evaluates in UTC — one clock for launchd, CI, and the shell.

one evaluator buys	why
CI correctness under delayed or skipped ticks	compare against the last run, not "does now match the expr"
launchd catch-up after sleep	free — the same comparison, no wake hook
`routine run --due` as the universal entry	every scheduler is a dumb tick

next-fire-after is a minute-scan forward from the last run (horizon eight years, so Feb 29 recurs; dead months skip to their 28th) — dumb, correct, sub-second. Day-of-month and day-of-week follow cronie: OR when both are restricted, AND when either opens with * (*/2 included).

Schedulers are dumb ticks

Neither scheduler knows a routine's schedule. Both wake up, ask the one evaluator what is due, and exit.

launchd — com.routines.due

routine install renders one agent; routine uninstall boots it out
StartInterval 60 + RunAtLoad true, running /bin/bash -lc "exec <runner> run --due" with PATH and the ROUTINE_HOME/ROUTINE_DIR/ROUTINE_STATE anchors stamped (XML-escaped) — no cd, the runner enters the routines home itself
RunAtLoad doubles as login and wake catch-up

CI — one static workflow

routine sync-ci emits .github/workflows/routines.yaml into the repo it is invoked in
cron every 15 min + workflow_dispatch; ROUTINE_HOME = that repo's routines/ dir, restore routines/.state from actions/cache, fetch bin/routine if absent, run --due, save cache
the save runs under if: always() — actions/cache saves only on success, so one red routine would roll back every other routine's state
cache eviction just makes everything due once — the idempotency contract absorbs it

routine run  frontmatter → lock (mkdir .state/<name>/lock, pid inside; live pid ⇒ 75, dead ⇒ reap, no pid ⇒ held for a minute)
             → requires gate (exit 78, loud list of missing vars — recorded only by the holder)
             → cd $ROUTINE_HOME (blocks and the catch run there; a missing home ⇒ 64)
             → watchdog (bash-native; SIGTERM to the block's group, SIGKILL after grace; a block or agent started past the deadline TERMs itself; exit 124, and a catch that outlives the deadline skips its retry)
             → HUP/INT/TERM (129/130/143) TERM the block's group, KILL it after two seconds, before the record and the lock release
             → blocks under the try/catch contract
             → last-run.json {started, started_epoch, finished, exit, duration, degraded}, written on every path (trap) and appended to runs.jsonl
             → the failing block's exit passes through

The shared wrapper — every verb that runs a routine runs it through this.

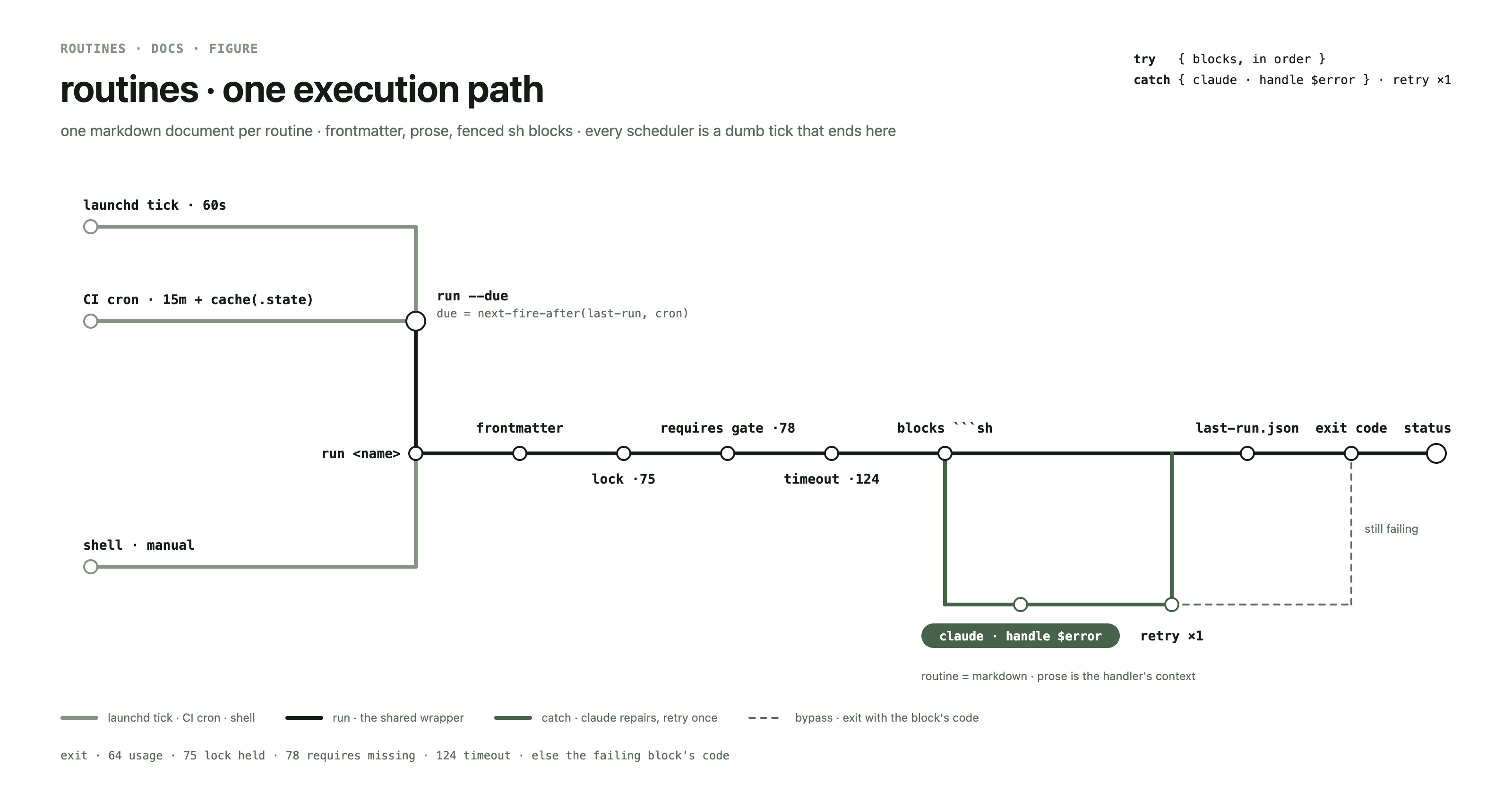

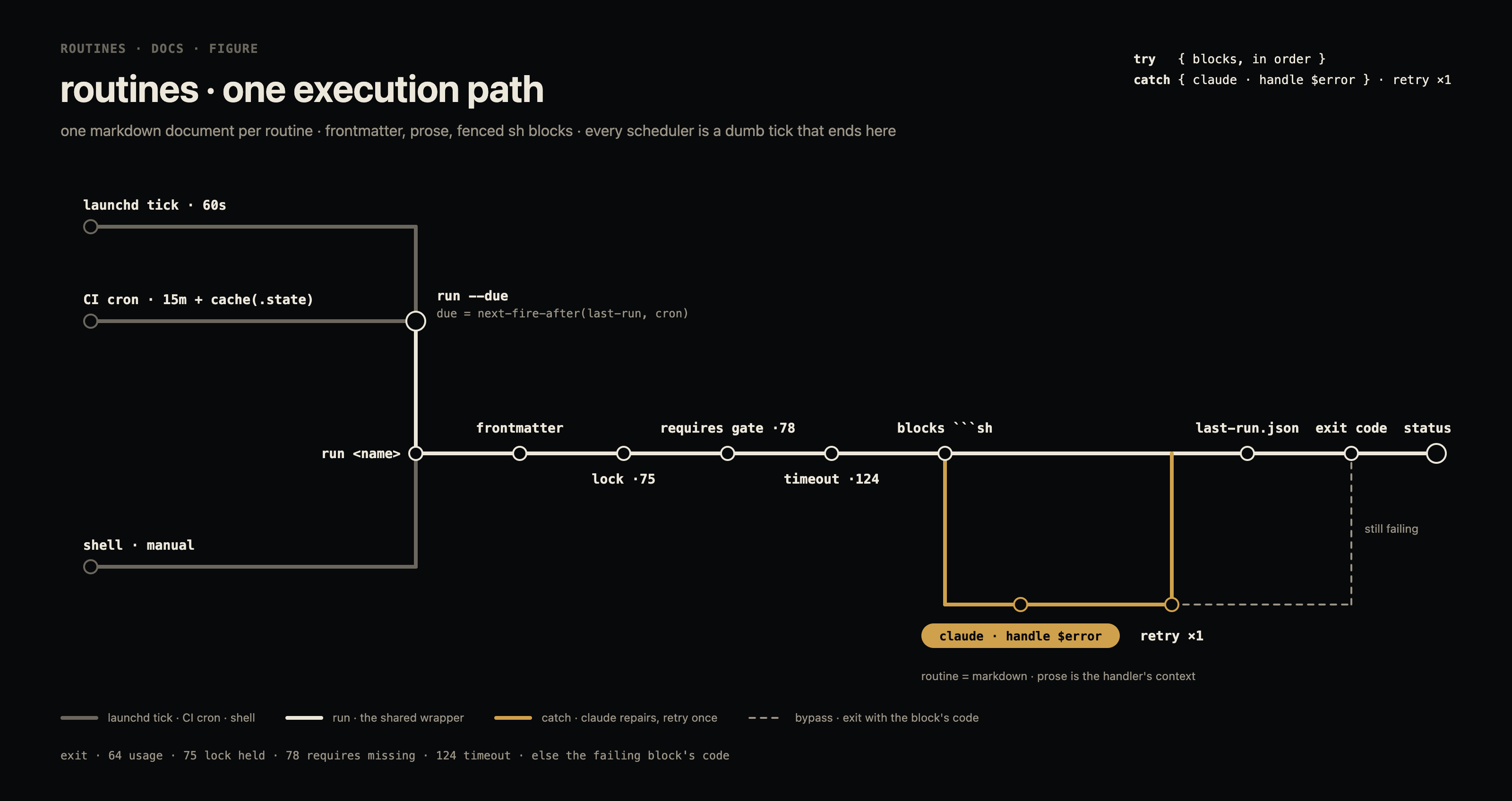

The figure

One execution path, end to end: the tick, the gate, the lock, the blocks, and the single catch that repairs and retries.

One execution path through the runner as a transit map — launchd tick, CI cron and a shell converge on run --due and run <name>; then frontmatter, lock, requires gate, timeout, blocks, last-run.json, exit code and status; the catch loop from blocks through claude to a single retry, and a dashed bypass to the exit code when still failing. — One execution path, end to end. Source: Claude Design canvas routines figures, board execution-path.

One execution path, end to end. Source: Claude Design canvas routines figures, board execution-path.

Verbs

Six verbs — the whole surface. Every one of them ends at the same runner.

verb	duty
run <name>	run one document through the wrapper — gate, lock, timeout, try/catch
run --due	the universal entry — run every due routine; silent when none are
status	frontmatter × last-run join: schedule, due?, last exit, duration
install	render and load the single launchd tick agent
uninstall	boot the agent out and remove its plist
sync-ci	(re)write `./.github/workflows/routines.yaml` in the invoking repo

Exit codes and contracts

code	meaning
64	unknown routine, or usage
75	lock held by a live run
78	`requires` missing
124	timeout — the watchdog fired
else	the failing block's own code, passed through

Blocks are idempotent — catch-retry, cache eviction, and tick overlap can all double-fire; the lock serializes, idempotency absorbs.
bash 3.2-safe, zero-dep — bin/routine is one script with no jq, yq, or GNU timeout; claude is needed only when a catch fires or a block calls it.
$ROUTINE_HOME/.state/ is never committed — CI persists routines/.state through actions/cache only.

Scale: the runner is ~700 lines of bash plus two small generators (plist, workflow).

Migration — a follow-on, not this build

Existing ad-hoc routines port one per document: a scheduled shell command inlines as a single block; an unattended-claude prompt becomes the document's prose plus a claude block, with git tracking its drift once it lives in the repo. A prose procedure paired with a mechanics script is already this shape — the standing proof of the format.

Rejected alternatives

routine.conf + run.sh per routine dir (the first sketch) — superseded by the executable-markdown directive: the document unifies script and prompt; two files with implicit coupling become one artifact.
cron → StartCalendarInterval per-routine plists — punctual and power-optimal, but the translator (ranges/steps expanding into dict arrays) is the largest complexity sink in the system, drifts as a second schedule dialect, and still needs a separate catch-up mechanism. A 60-second tick that reads two files and exits is negligible.
"does now match the expr" due-check — breaks under delayed Actions ticks and machine sleep; derived due-ness handles both with the same code.

since 2026-08-12 · initial design — user sketch + executable-markdown/try-catch directive · since 2026-08-16 · ROUTINE_HOME decoupling — documents and state leave the framework repo
